Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
Tüm ürünler
-
Optik Kuvars Cam
-
Kuvars Cam İşleme
-
Kuvars Cam Tüp
-
Kuvars Kılcal Tüp
-
Borosilikat Cam Tüp
-
Kuvars Cam Çubuk
-
Lazer Yedek Parça
-
Silikon Dioksit Püskürtme Hedefi
-
Kuvars Aparatı
-
Kuvars Cam Tabak
-
Özel Cam Parçaları
-
Özel Seramik Parçalar
-
Optik Üretim Ekipmanları
-
Mobil Cam Kapak Yapma Makinesi
-
Optik Ölçüm Cihazı
-
Optik Kristal

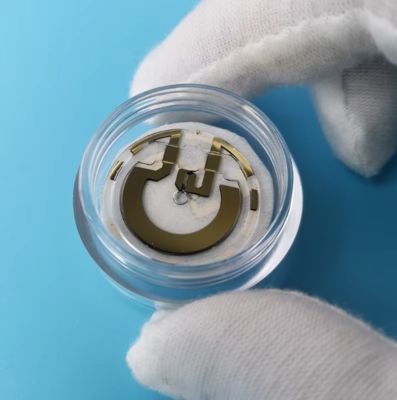

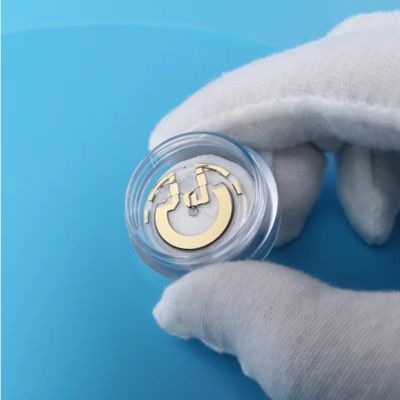

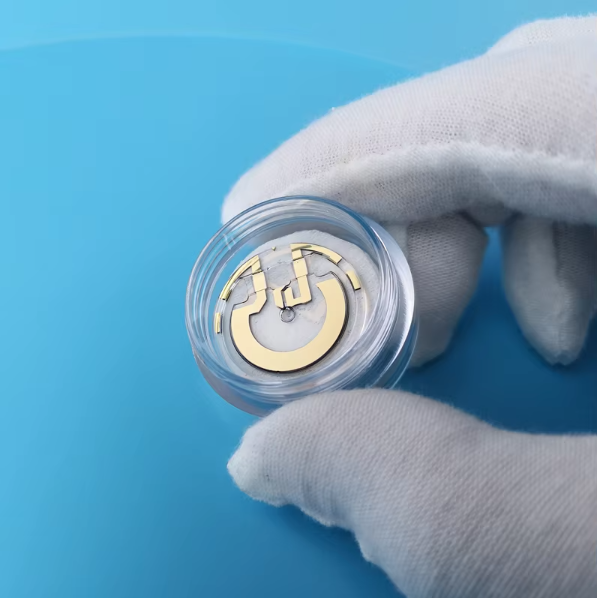

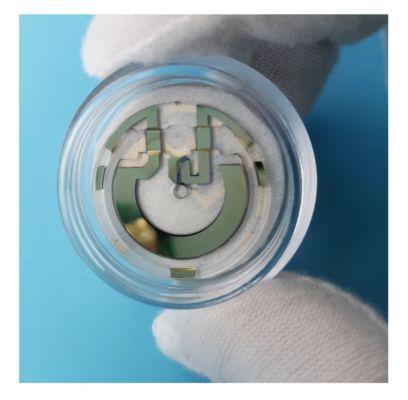

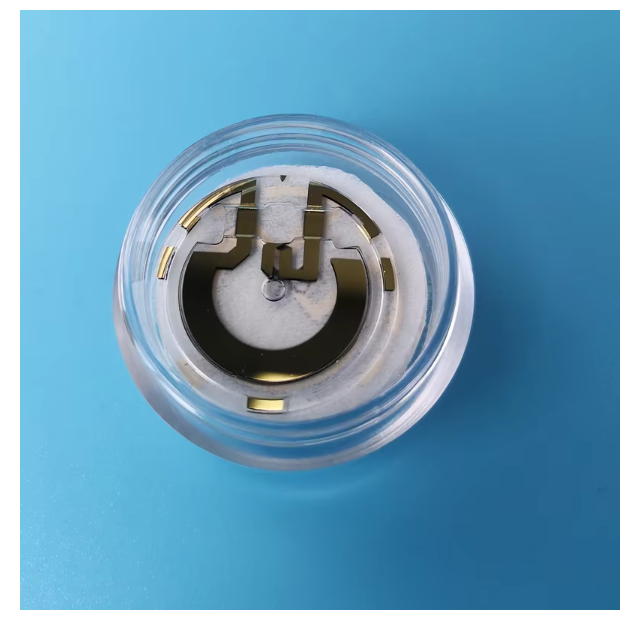

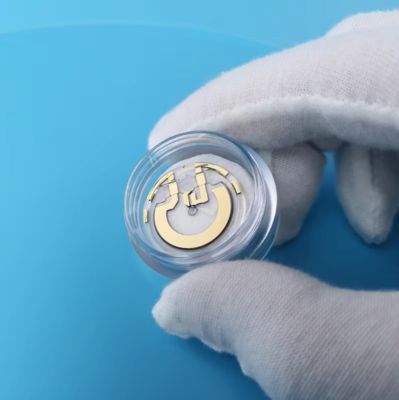

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| Menşe yeri | Shandong, Çin |
|---|---|
| Marka adı | ZKTD |
| Sertifika | ISO 9001:2008, Rohs |
| Model numarası | ZKTD-PO12 |
| Min sipariş miktarı | 5 adet |
| Fiyat | USD 48/Pieces |
| Ambalaj bilgileri | Karton, ahşap kutu, inci pamuk. |
| Teslim süresi | 14 iş günü |
| Ödeme koşulları | L/C, T/T |
| Yetenek temini | Ayda 10000 Parça |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Vurgulamak | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |

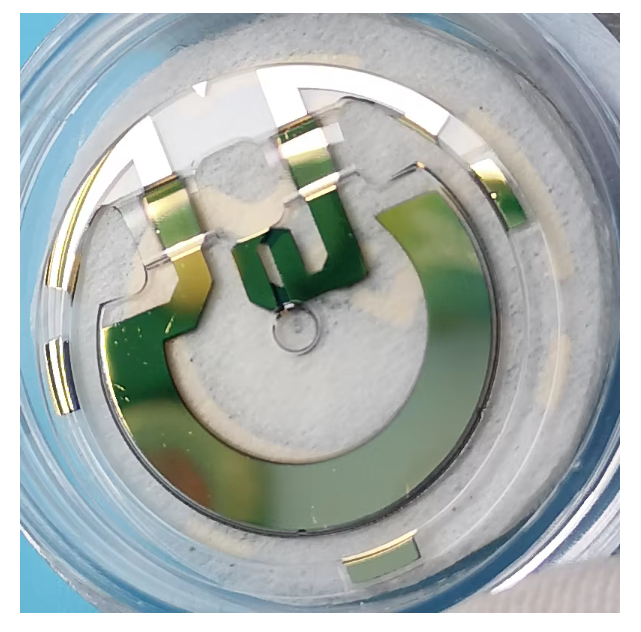

Flexible Beam Quartz Pendulum For Inertial Navigation
Company Profile
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
